What is the relationship between limit switches and valves?

What is the relationship between limit switches and valves?

In industrial production, valves are essential in controlling fluid flow, pressure, and temperature. Correct valve operation plays a vital role in the production process’s safety, stability, and efficiency. Valve accessory limit switches came into being to achieve accurate monitoring and control of valve position and status. This article will detail the working principle, application scenarios, advantages, and future development directions of valve accessories limit switches.

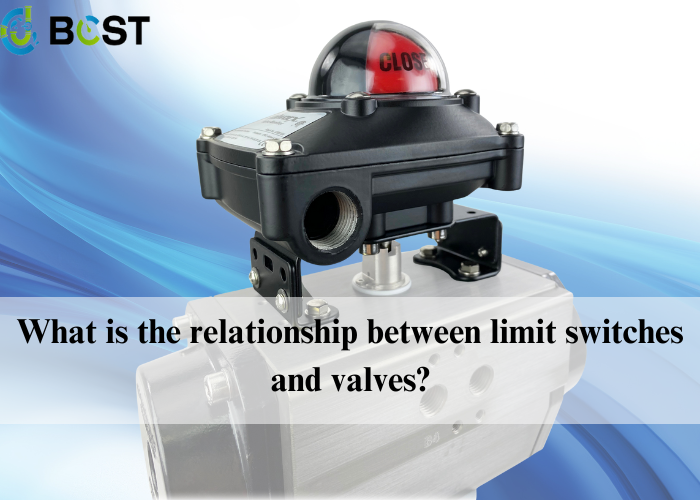

What is the relationship between limit switches and valves?

1. Working principle of limit switch of valve accessories

The valve accessory limit switch is a device used to monitor the position and status of the valve. Its working principle mainly includes a trigger device and a signal output device.

1.1 Trigger device

The trigger device is usually installed on the valve. When the valve reaches the set open or closed position, the trigger device will be subject to the corresponding force or displacement. This may be caused by movement or position change of the valve, such as when the valve opens or closes to a certain angle or position.

1.2 Signal output device

The signal output device receives the signal from the trigger device and generates a corresponding output signal. This output signal can be an electrical, pneumatic, or mechanical signal and is used to indicate the status or position of the valve. These signals can be connected to monitoring systems, control systems, or alarm systems to monitor and control the valve’s status.

Valve accessory limit switches have a wide range of application scenarios in industrial production. Their main applications include but are not limited to the following aspects:

2.1 Fluid control system

In the fluid control system, the valve accessory limit switch can realize the valve’s opening, closing, and adjustment control. By monitoring the status and position of the valve, precise control of fluid flow can be achieved to ensure regular operation of the system and stability of fluid flow.

2.2 Process control system

Valve accessory limit switches can monitor and control the production process in process control systems. For example, in chemical production, valve accessory limit switches can be used to monitor the status of the reactor’s feed valve and discharge valve to ensure the reaction process’s safety and efficiency.

2.3 Security protection system

In the safety protection system, valve accessory limit switches can be used to monitor the position and status of the valve, promptly detect valve abnormalities or out-of-control situations, and take corresponding measures to protect equipment and processes from damage.

2.4 Environmental monitoring system

In environmental monitoring systems, valve accessory limit switches can be used to monitor the status and position of valves to ensure the regular operation of environmental monitoring equipment and the accuracy of data collection. For example, in sewage treatment plants, valve accessory limit switches can be used to monitor the status of sewage pump valves to ensure the smooth progress of the sewage treatment process.

3. Advantages of limit switches for valve accessories

Valve accessory limit switches have the following advantages over traditional valve control devices:

3.1 Real-time monitoring and control

The valve accessory limit switch can monitor the status and position of the valve in real-time and control the valve through output signals. This can help operators promptly detect valve abnormalities or out-of-control situations and take appropriate measures to ensure the safety and stability of the production process.

3.2 High accuracy and reliability

Valve accessory limit switches use high-precision sensors and controllers to monitor and control valve position and status precisely. Its structural design and manufacturing process have undergone strict quality control to ensure stability and reliability in harsh working environments.

3.3 Flexibility and scalability

The design of valve accessory limit switches is flexible and diverse and can be customized and adjusted according to different application scenarios and needs. At the same time, it has good scalability and can be connected with other monitoring equipment and control systems to achieve comprehensive monitoring and control of the entire production process.

3.4 Simple installation and maintenance

Installing and maintaining valve accessory limit switches are relatively simple and convenient. Usually, it only needs to be installed on the valve and connected to the control system or monitoring equipment. Only regular inspection and maintenance are required during daily use to ensure its regular operation and long-term stability.

limit switch box for valve

4. The future development direction of limit switches for valve accessories

With the continuous development of industrial automation and intelligence, valve accessories limit switches will also usher in new development directions:

4.1 Intelligent monitoring and remote control

In the future, the limit switches of valve accessories will be more intelligent and have the capabilities of automatic monitoring and remote control. By connecting to the Internet of Things platform or Industrial Internet system, the valve accessory limit switch can realize real-time monitoring of the valve status and position and enable remote control and adjustment. Factory managers can remotely monitor the status of valves through mobile applications or web interfaces, control and adjust the production process anytime and anywhere, and improve production efficiency and management levels.

4.2 Data collection and analysis

Future valve accessory limit switches will have more robust data collection and analysis functions. Valve accessory limit switches can realize real-time collection and analysis of valve operating data through built-in sensors and data processing units. Using big data and artificial intelligence technology, valves’ operating status and failure risks can be predicted and diagnosed, preventive maintenance measures can be taken in advance, and production shutdowns and maintenance costs can be reduced.

4.3 Energy conservation, environmental protection, and sustainable development

In the future, limit switches for valve accessories will pay more attention to energy conservation, environmental protection, and sustainable development. By optimizing valve control strategies, energy consumption and emissions can be reduced, and industrial production can be greened and low-carbon. At the same time, valve accessories limit switches will also pay more attention to the environmental performance and reproducibility of materials, choosing more environmentally friendly materials and manufacturing processes to reduce the negative environmental impact.

4.4 Intelligent diagnosis and predictive maintenance

Future valve accessory limit switches will have the functions of intelligent diagnosis and predictive maintenance. Through built-in algorithms and machine learning technology, valve operating data can be analyzed to identify potential failure factors and maintenance needs. Predictive maintenance can help factory managers promptly detect and handle valve failures and abnormalities, improving equipment reliability and production continuity.

2.Pneumatic Actuator with Limit Switch Box

5.Conclusion

As an essential piece of equipment in industrial production, valve accessory limit switches play a crucial role in monitoring and controlling valve position. By monitoring valve status in real-time, protecting equipment and processes, realizing automated control, and improving production efficiency, valve accessory limit switches provide essential support for industrial production. In the future, with industrial automation and intelligence development, valve accessories limit switches will be further intelligent, efficient, and environmentally friendly, providing more robust support and guaranteeing the sustainable development of industrial production.
