How Does Ductile iron valves and cast steel valves work?

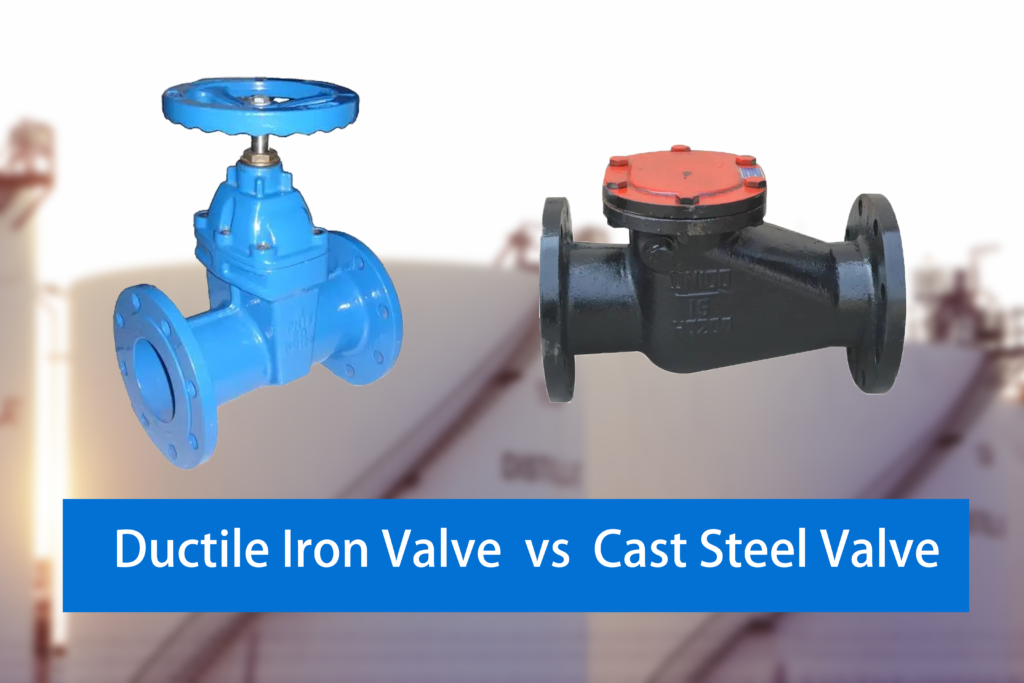

Ductile Iron Valve Cast Steel Valve

This article will examine ductile and cast iron valves’ houses, strengths, and weaknesses. Join us as we find the subtleties of those essential materials and discover when to pick out one over the other for unique applications.

What Sets Ductile Iron Apart from Cast Iron?

Before heat treatment, ductile iron has greater toughness than normal cast iron, making it less prone to fracturing on impact. Ductile iron can flex without breaking due to its greater flexibility. Grey cast iron, on the other hand, is noted for its toughness in comparison. Ductile cast iron typically comprises 3.2-3.6% carbon, 2.2-2.8% silicon, and a trace of a “nodulizing element.”


The recognized standard for ductile iron castings is ASTM A536. Gray iron has less flexibility than ductile iron. Compared to normal cast iron, which has no yield strength, ductile iron has a tensile and yield strength of 40k. This distinction indicates that, whereas gray iron fractures when bent, ductile iron can endure some deformation and adapt to some extent.


Casting and machining ductile iron is a simple procedure. Despite its small weight, ductile iron valves have a high strength-to-weight ratio. On the other hand, steel can be produced at a substantially lower price than ductile iron. Steel is likewise extra machinable and performs properly in casting programs.

Corrosion Resistance:

Ductile iron has high tensile and yield strength and corrosion resistance. It is better suitable for high-demand applications than cast iron due to its ability to tolerate bending without fracturing. Because of its durability and dependability, ductile iron is popular in the pipe, fitting, and valve sectors.

Tensile and Yield Strength:

While both materials have comparable tensile strengths, ductile iron has a higher yield strength of 40 ksi, whereas cast steel can only get up to 36 ksi. It is worth noting, however, that as the power of ductile iron grows, so does its ductility.

Toughness or Impact:

While the tensile strengths of both materials are comparable, ductile iron has a higher yield strength of 40 ksi, whereas cast steel can only get up to 36 ksi. It is well worth citing, but, that as ductile iron’s energy grows, so does its ductility.

Thermal Conductivity:

Ductile iron has a lower heat conductivity than gray iron. Due to heat transfer through the graphite particles while in the graphite phase, gray iron has a remarkably high thermal conductivity.


Ductile iron is a tough and long-lasting material for pipes, fittings, and valves. One disadvantage is that ductile iron is more expensive than cast iron due to its more complex chemical composition.

What exactly is Ductile Iron Valve?

A ductile iron valve is made from ductile iron, a shape of forged iron that is well-known and shows improved power, flexibility, and durability compared to standard solid iron. Ductile iron is created by including small quantities of magnesium in the iron throughout the casting, which alters the molecular shape, resulting in extra malleable material.

Ductile iron valves are widely used in diverse industries because of their extremely good mechanical properties and resistance to put on, corrosion, and excessive strain. They are normally employed in water distribution systems, wastewater treatment, irrigation systems, industrial methods, and different programs in which reliability and sturdiness are essential.

The benefits of ductile iron valves are they can withstand harsh environments, provide a tight seal, and offer clean setup and protection. Their ductility makes them much less liable to cracking or breaking under pressure.

Ductile Iron Valve vs. Cast Steel Valve Applications

Ductile Iron Valve Applications:

Ductile Iron Valves are generally utilized in water distribution systems, wastewater, irrigation systems, fire protection structures, HVAC structures, and various industrial procedures. They are also appropriate for mining, energy generation, oil and gasoline, and agricultural programs because of their energy, sturdiness, and resistance to corrosion.

Cast Steel Valve Applications:

Cast Steel Valves discover excellent use in industries like oil and fuel, petrochemical, and chemical processing. They also are utilized in water and wastewater treatment, refining methods, pulp and paper turbines, prescribed drugs, and marine and shipbuilding programs. Their sturdy production and tremendous strain abilities make them appropriate for critical environments.

What exactly are Cast Steel Valves?

Cast metal valves are commercial valves crafted from cast metal, a ferrous alloy composed broadly of iron and carbon, with small quantities of other elements like manganese, silicon, and occasionally other alloying factors. These valves are synthetic using the casting system, wherein molten metal is poured into molds and allowed to solidify into the desired valve form.

Cast steel valves are acknowledged for his or her power, sturdiness, and versatility, making them appropriate for numerous applications in various industries, in conjunction with oil and fuel, petrochemical, power technology, and water treatment. They are designed to control the flow of fluids (beverages or gases) within pipelines and other structures.

There are specific kinds of cast steel valves, including gate valves, globe valves, ball valves, and butterfly valves, each serving precise purposes based on the character of the fluid and the application necessities. These valves are in various sizes, pressure ratings, and end connections.

The advantages of cast metallic valves are their ability to handle excessive pressure and temperature environments, excellent corrosion resistance, and dependable and tight close-off skills. They are frequently preferred in programs requiring strength, performance, and value effectiveness.

Overall, cast steel valves play a critical role in controlling the flow of fluids in industrial processes, ensuring efficient and safe operations across numerous sectors.

Ductile Iron ValveCast Steel Valve

Advantages of Cast Steel Valves

§ Design Flexibility: Solid metallic valves are crafted from molten fabric to be effortlessly formed into any preferred length or shape. Additionally, this complements the layout complexity, ensuing in sophisticated and incredibly useful valve additives.

§ Diversity: Cast metal valves offer a broader selection of metal compositions, letting them be made from numerous metal alloys. By specifying the best metallic composition, you may acquire specific parameters such as improved corrosion resistance to fulfill your requirements.

§ Reduced Processing: Fabricating forged metallic valves no longer entails considerable machining, leading to reduced prices and quicker manufacturing timelines. Cast metallic valves are simpler to have than forged ones because casting is more truthful and fee-powerful than generating. This accessibility makes obtaining substitute additives and valve services less difficult, ensuring that spares and valve renovation are extra handy.

§ Design that saves space: Cast metal valves have a curved and rounded layout, facilitating smooth setup, especially in constrained areas and slender pipelines.

Disadvantages of Cast Steel Valves

§ Higher Cost: Cast steel valves can be extra high-priced than valves crafted from other substances, which include solid iron or certain non-ferrous alloys. The manufacturing technique entails melting and casting molten metal, which could contribute to a better price.

§ Weight: Cast metallic valves tend to be heavier than valves from other substances. This can be a downside in programs where weight is essential.

§ Limited Design Flexibility: Solid steel valves offer a wide range of metallic compositions, but the casting system may also have obstacles concerning intricate designs and complex geometries. This may want to limit the valve’s performance in precise programs.

§ Longer Lead Times: The casting procedure for solid steel valves can take longer than different valve production methods like forging. This longer lead time can be a disadvantage when urgent replacements or custom orders are required.

§ Prone to Porosity: During casting, air or gasoline pockets (porosity) can now and then form in the fabric, leading to decreased structural integrity and potential leak paths. Proper quality management and casting techniques are critical to decreasing this trouble.

§ Corrosion Susceptibility: Solid steel valves can improve corrosion resistance by selecting the best metal composition, but they will still be susceptible to corrosion in unique competitive environments. Regular maintenance and protective coatings may be vital to mitigate this disadvantage.

§ Lower Temperature Tolerance: Cast metallic valves may have decreased temperature tolerance than specialized high-overall performance materials like stainless steel or uncommon alloys. Extreme temperatures may additionally affect their mechanical properties and functionality.

§ Machining Requirements: While forged metal valves might not require good-sized machining at some point of fabrication, specific valve components may still want machining for precision. This can add to production fees and time.

It’s important to note that cast steel valves have numerous disadvantages and numerous advantages, making them suitable for various applications in different industries. The choice of valve material should always consider the specific requirements and conditions of the intended application.
