What are the Differences between a Pressure Control Valve and a Flow Control Valve?

Flow Control Valves

Importance of Control Valves in Fluid Systems

A control valve is like the ‘hands and feet’ of commercial automation – a crucial part of commercial manufacturing. Relying on guide management of pipeline systems cannot meet the demands of current industries for manner manipulation. Manual manipulation is inaccurate, especially when specific liquid level management is wanted with minimal fluctuations. The time it takes for a guide operator to react and adjust can result in poor liquid level manipulation. Moreover, guide management may be sluggish, and there may be a risk of errors because of human fatigue. These problems can purpose significant losses in industrial automation management. That’s why we need to manipulate valves to replace guide manipulation and meet automated terminal management of the device.

Control valves get indicators from the controller and act on the managed gadgets, bringing the managed parameters lower back to their set values, hence ensuring an easy production process. Control valves are established now in how pipelines perform in harsh environments, including high temperatures, excessive pressures, low temperatures, freezing conditions, flammable or explosive situations, crystals or porous substances, and strong corrosive or excessive-viscosity conditions.

The performance of control valves impacts the best of the procedure control system, which, in flip, impacts the last product’s satisfaction and the efficiency of the whole device.

Overview of Pressure Control Valves and Flow Control Valves

Understanding Pressure Control Valves

  1. Definition and Function

A pressure control valve is an industrial valve that modifies the opening size inside the valve to manage fluid pressure. It is used in chemical, petroleum, and herbal fuel industries to protect pipes and equipment from being damaged by too high or too low pressures.

  1. Role in regulating system pressure

In business production, pressure performs a crucial role in controlling the go with the flow of pipes and containers. That’s why pressure manipulation valves are great crucial! They help control the flow in pipelines and make sure everything works.

  1. Types of Pressure Control Valves:


There are differential types of pressure control valves:

2.1 Globe Pressure Control Valve

Globe-Type Pressure Control Valve

There are two predominant methods to pressure strain control valves: pneumatic and electric pressure control valves.

The pneumatic pressure control valve uses compressed air as its power supply and an air cylinder because of the actuator. It also relies on electric valve positioners, converters, solenoid valves, and role-conserving valves to pressure the valve. Usually, it involves connecting, putting in, and adjusting the pneumatic actuator and manipulating the valve. Pneumatic actuators are available in single-performing and double-acting kinds. The unmarried-acting actuator has a reset spring, whilst the double-appearing one does no longer. If the single-acting actuator loses its unique role or fails, the valve can return to its unique open/near kingdom.

The electric-powered pressure control valve has a motor powered via a 220VAC or 380VAC strength delivery. A 4~20mA control signal manages it. Inside the regulating valve is a controller that converts the modern sign into a step motor’s attitude sign. The motor rotates and drives the valve stem’s movement via gears, levers, or gears with levers. This achieves either linear or angular motion. While the engine runs, a sliding potentiometer related to a 3-manner joint outputs the valve’s function signal. The valve receives indicators from the commercial automation control device. To pressure modifications inside the valve’s center and seat, controlling the pipeline medium’s pressure rate, temperature, pressure, and different technique parameters. This achieves an automated regulating feature.

2.2 Self-Regulated Pressure Control Valve

Self-operated pressure-regulating valves are used in industries. They are a control tool that doesn’t want any outside assets. They adjust themselves based on pressure, temperature, or flow modifications whilst pre-set values are reached. These valves are electricity-saving contraptions and feature many capabilities in a manipulated machine.

Self-operated pressure regulating valves may be divided into sorts based on the pressure factor location: pre- and publish-valve. When the stress point is earlier than the valve, it holds the strain earlier than the valve to remain steady. When the strain point is after the valve, it regulates the strain after the valve to remain strong. These valves do not need outside electricity resources, so we can paint in conditions without power or compressed air, making them handy and energy-saving.

The pressure adjustment variety is great and overlapping, ensuring excessive precision in law. The strain placing can be adjusted throughout the operation. For post-valve pressure law, the pressure ratio before the valve to strain after the valve may be between 10:1 to 10:8. It uses a rubber diaphragm for detection, and the actuator has excessive accuracy and sensitivity. The strain balance mechanism makes the regulating valve responsive and unique on top of things.


Working Principle: Two self-operated stress regulation sorts are put up-valve and pre-valve manage. The strain P1 before the valve flows via the throttle of the valve middle and seat, becoming the pressure P2 after the valve. P2 enters the upper diaphragm chamber via the pipeline. It acts at the top disc, balancing the pressure with the spring’s response pressure, which determines the relative function of the valve middle and seat, thereby controlling the stress after the valve.

When P2 increases, the pressure performing on the pinnacle disc additionally increases. At this factor, the force at the top disc is more than the spring’s reaction force. This cause the valve center to transport closer to the valve seat, reducing the float vicinity between the valve middle and valve seat. Increasing drift resistance and decreasing P2 till the force on the pinnacle disc and the spring’s reaction pressure are balanced, thereby lowering P2 to the set cost. , when P2 decreases, the movement path contradicts the above procedure. This is how publish-valve pressure law works.

Self-operated pressure regulating valves have extensive-ranging programs and are beneficial for managing high-viscosity media.

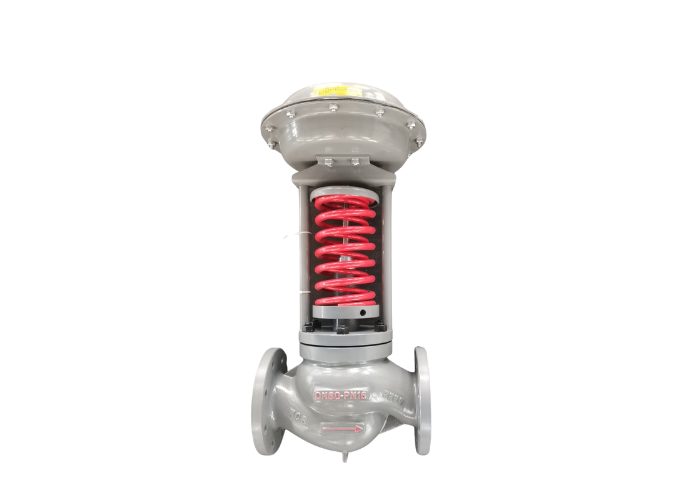

Self-operated control valve

Exploring Flow Control Valves

A flow control valve is a type of valve that uses the electricity of the fluid itself to change the flow kingdom inside a pipeline. It has reversibility, identical percentage traits, and adjustable proportional homes. The manner it works is while the inflow and outflow are balanced, any modifications in float due to versions in inflow strain or temperature may be ignored. So, by adjusting the throttle place, we can control the corresponding go-with-the-flow.

In sensible programs, using the throttle factor’s commencing to govern the water’s glide fee is referred to as a transmitter. And using the go with the flow price to control the float quantity is referred to as the actuator (or manage valve).

The role of the throttle element is to create a specific strain distinction between the inlet and outlet, which cuts off or connects the water go with the flow within the pipeline. Various shapes of throttle additives divide the fluid and go with the flow through them into several identical-volume elements. Each element flows via its outlet at the required drift charge, reaching the desired output waft charge.

  1. Definition and Purpose
  2. Role in managing fluid flow rate

Flow control valves are used for various things, like coping with flow rate. Flow control valves’ outstanding roles are to use electricity and adjust flow.

First, they help deplete energy. When water flows via the valve, it collides and loses its strength, so by the time it reaches downstream pipes, the water is high-quality and accessible. For example, in a mission without drift management facilities, water from a high-stage reservoir flows, thanks to gravity, through about 70 kilometers of pipes and tunnels to a reservoir in front of a pumping station. The top distinction between the excessive-stage reservoir and the pumping station reservoir is eighty meters, and the pipeline has many ups and downs. Sometimes, limitations can block the water float, inflicting strain surges. But they go with the flow, manipulate valves make sure everything keeps strolling.

Second, they help change and go with the flow. Flow control valves are easy to use – you could adjust the valve commencing to manipulate the flow. When monitoring centers are in location, it can also be carried out. The precision of drift can be specific, like even up to 1-thousandth. This guarantees the pipeline’s water goes with the flow and matches the pump station’s desires based on the operating situation. As it runs, the glide manage valves are adjusted based on monitoring strain, water levels, and glide costs to stabilize and stroll the whole thing. It prevents any hiccups at some stage in float regulation.

Flow control valves help deal with water flow. Flow control valves are key elements in many sectors and essential in fluid flow through pipelines.

  1. What are Flow Control Valves?Imagine a tap in your home – you can flip it to adjust the water drift. Flow manipulate valves are like supercharged variations of faucets. They regulate the drift of beverages and gases in pipelines, ensuring the proper quantity receives.
  2. Working Principle:Flow control valves use clever mechanisms to govern flow. When the stress or temperature adjusts in the pipeline, the valve responds to keep the flow regular. It’s like an intelligent assistant, adjusting to keep a stable waft charge.
  3. Different Flow Control Valves:There are numerous styles of drift manipulate valves, every proper for exclusive obligations. Some valves use a throttle factor to create strain variations, whilst others use electrical alerts to modify go with the flow. The preference depends on the specific desires of the software. There are pneumatic waft manage valves and electric-powered flow manage valves.
  4. Why Flow Control Valves are Important?In many business techniques, precision is essential. Flow manipulates valves to ensure the proper quantity of fluid is introduced at the right time. This precision is critical for the satisfaction and efficiency of the production manner.
  5. Flow Control Valves are used in a variety of applications.From managing the flow of chemicals in a plant to regulating water levels in a dam. Valves make life easier and safer. They are also required in heating and cooling systems, oil and gas pipelines, and the food and beverage industries.
  6. Advantages of Flow Control Valves:Flow control valves provide several blessings and keep power by fending off extra fluid use. They can reply to modifications in strain or temperature, making processes more green and lowering waste.
  7. The Future of Flow Control Valves:As the era advances, flow management valves emerge even more sophisticated. With automation and clever control systems, those valves will play a good, more significant function in business tactics, making them extra efficient and pleasant.


Conclusion: Flow control valves, like conductors in a symphony, orchestrate the movement of fluids in various businesses. They ensure proper drift at the proper time, contributing to the smooth operation of our cutting-edge world. Flow control valves will continue to be at the heart of novel ideas for dealing with fluid waft as the period progresses.

FLOW Control Valves

Key Differences: Pressure vs. Flow Control Valves

Regulating valves, pressure control, and flow control valves have little distinction in their structure. The distinction lies in what they are based on.

Pressure control valves exchange the float based on the stress after (or before) the valve to keep the strain strong. We choose its float characteristics to ensure the proper quantity of drift passes through for the duration of the process. So, choosing the proper waft characteristic is vital to ensure the device’s best pressure regulation.

Flow control valves exchange the flow based on the flow after the valve to maintain the flow stable when needed.
